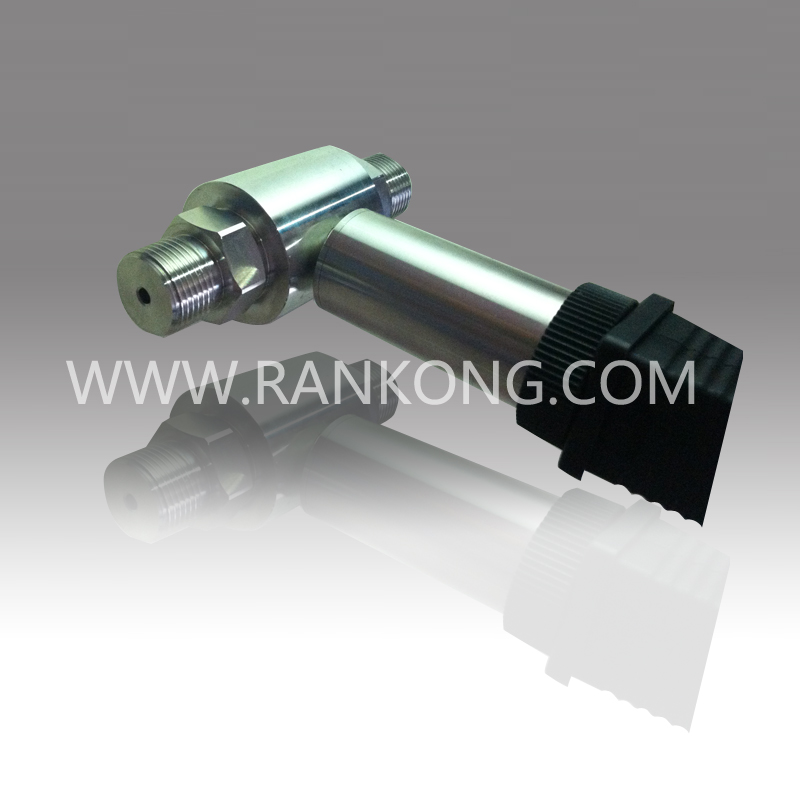

PMR610 Piezoresistive Differential Pressure

PMR610 Piezoresistive Differential Pressure

Product application: applicable to pressure difference measurement and control in oil,
chemical, power plant, urban water supply and hydrological exploration.
pressure range:0-3.5MPa;
accuracy:0.25%FS;
Output signal: 4-20m ADC



24-hour national online service:

025-84363968
Output Signal:4~20mA、1~5V、0~10mA、0~20mA、0~5V
Measuring Range:0~1kPa...3.5MPa





Power supply: 2-wire 15～28VDC 3-wire 15～28VDC

Electric connection: plug connection or Φ7.2mm 7-pin cable

Insulation resistor: 100MΩ，50VDC

Construction Material

Diaphragm: stainless steel 316L

Filled liquid: silicon oil



Shock effect: ≤1% at 3gRMS, 30～2000Hz

Media: liquid or gas which is compatible with construction material
